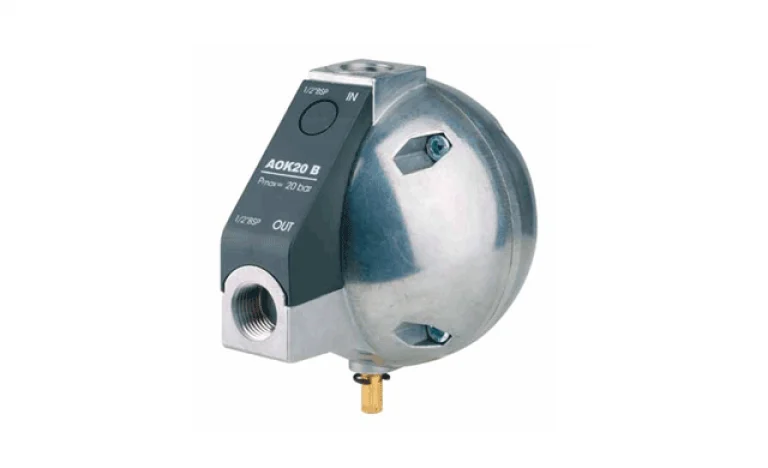

AOK 20B SERIES : AUTOMATIC MECHANICAL CONDENSATE DRAIN
หจก.แอ๊ดวานซ์ คอมเพรสเซอร์ เซอร์วิส
- CONDENSATE DRAINS , OMEGA : 20 bar
- operating pressure : 167 l/h
- drain capacity at 7 bar : ½”
- Connections : 1,5 to 65 °c
operating temperature range
APPLICATION
- Air compressor (piston or screw)
- After-cooler
- Cyclone condensate separator
- Pressure vessel/Air tank
- Air dryer
- Air filter
คำอธิบาย
AOK 20B has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air system. For any other technical gas please contact producer or your local distributor.
The unit can be installed as external drain on any application specified. Condensate accumulates in the aluminium reservoir and when the level is high enough condensate is discharged from the system without any air losses. Direct acting valve is operated by precise level controlled floater which assures reliable and efficient operation. Thanks to robust aluminium housing AOK 20B is suitable for heavy duty applications. AOK 20B is also equipped with separate manual drain for venting.
AOK 20B can be used in variety of applications. For applications not listed please contact producer or your local distributor
