AF SERIES : OMEGA ALUMINIUM COMPRESSED AIR FILTERS
หจก.แอ๊ดวานซ์ คอมเพรสเซอร์ เซอร์วิส
16 bar
Operating pressure
60 to 2.760 Nm³/h
Volume flow rate
3/8” to 3”
Connections
1,5 to 65 °c
Operating temperature range
RAL 5012
Standart colour
APPLICATION
• general industrial applications
• automotive
• Electronics
• Food and beverage
• Chemical
• Petrochemical
• Plastics
• Paint
คำอธิบาย
DESCRIPTION

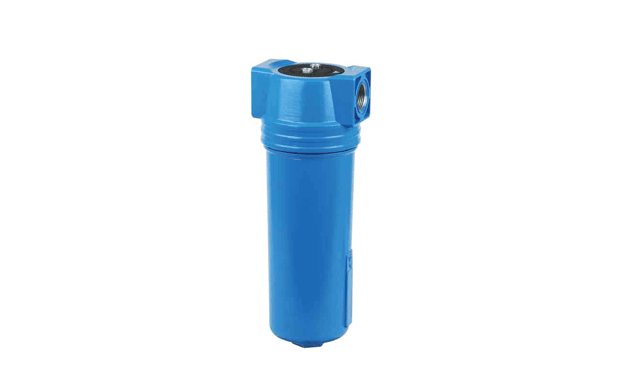

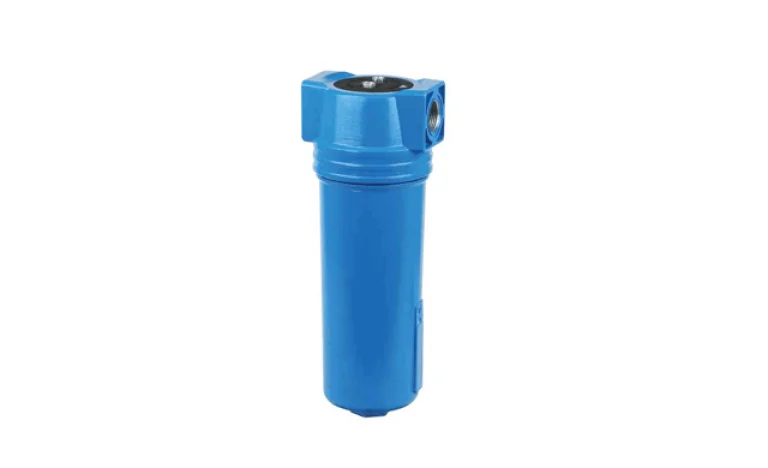

AF filters are designed for protection of the downstream compressed air system and equipment against defects and other failures.
They ensure high efficient removal of solid particles, water, oil aerosols, hydrocarbons, odour and vapours from compressed air systems up to 16 bar. For any other technical gas please contact producer or your local distributor.
Required compressed air quality according to standard ISO 8571-1 can be achieved with 9 different grades of filter elements (B, P, R, M, S, A, A2,H2 and MS2).
Optional internal and external condensate drains should be used for efficient condensate draining from filter housing.
